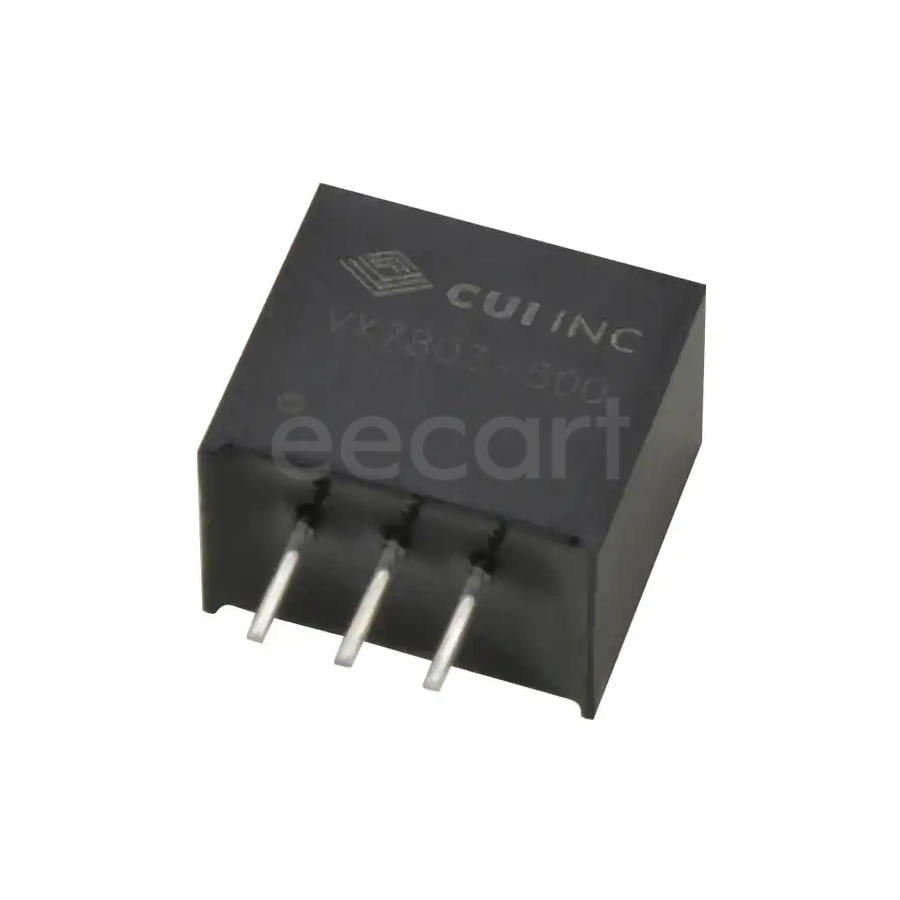

VX7803-500
Manufacturer:
Same Sky
Mfr.Part #:
VX7803-500
Datasheet:
Description:
DC to DC Converters SIP-3 Modules Through Hole Nominal Input Voltage:4.75 V to 36 V Min Input Voltage:4.75 V Max Input Voltage:36 V 86 %
| Parameter | Value |
|---|---|
| Length | 11.6 mm |
| Width | 7.55 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.16 mm |
| Packaging | Tube |
| RoHS | Compliant |
| Min Input Voltage | 4.75 V |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Output Power | 1.65 W |
| Efficiency | 86 % |
| Nominal Input Voltage | 4.75 V to 36 V |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 500 mA |
| Output Voltage-Channel 1 | 3.3 V |
